Heat pipe solar collector

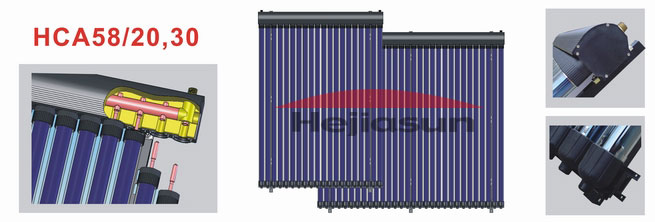

Heat pipe solar collector – HCA-58-20/30  HCA MANUAL.pdf SPF REPORTS-HCA20.pdf SPF REPORTS-HCA30.pdf
Pressurized system has no limit on installation altitude, nor leakage problem.Ensure a High performance and reliability even in freezing climate.Seven (7) years used in Sweden under -35 C degree with no complaints. The outlet/inlet is now placed at the back of the collector to allow flush installation of 2 or more collectors and keep the connections working out of your sight. New UV resistant clip-in-cups (Nylon 66) for convenient installation and protection of evacuated glass tubes. High quality approved by Solar Keymark,SRCC certification

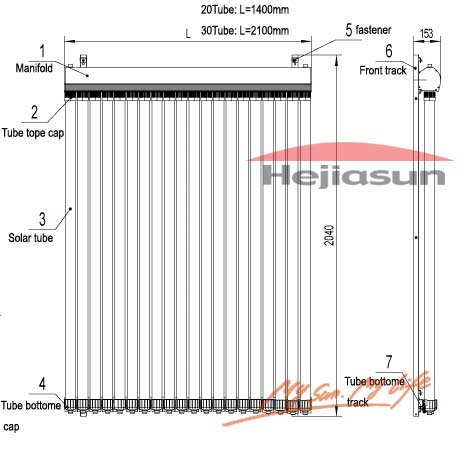

Solar Heat Pipe Collector Drawing:

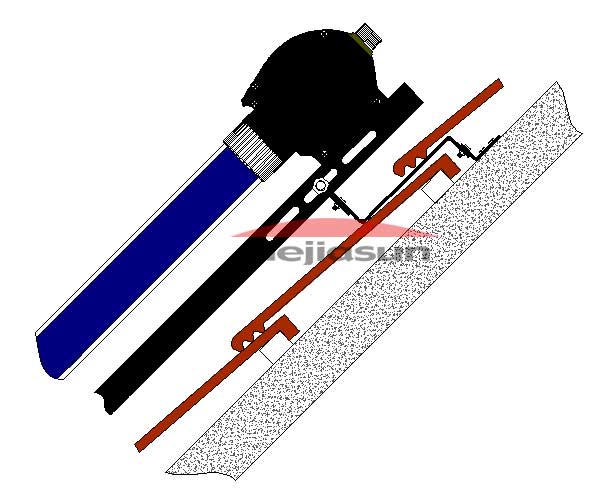

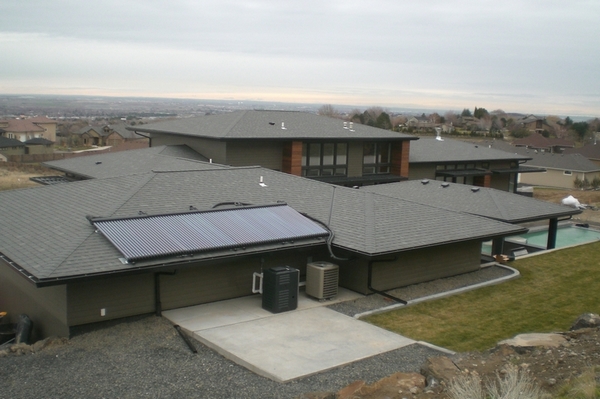

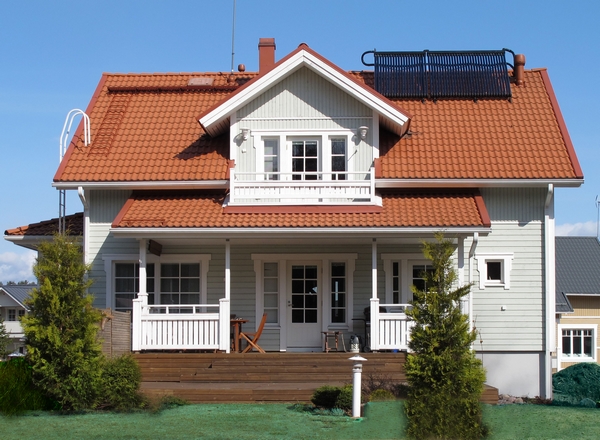

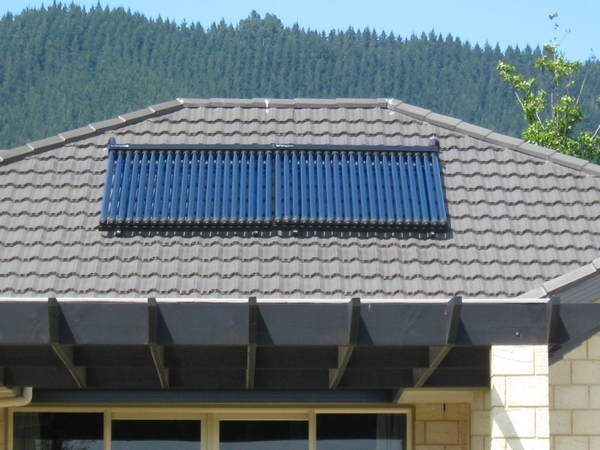

Install on roof:
